Trailer Overview

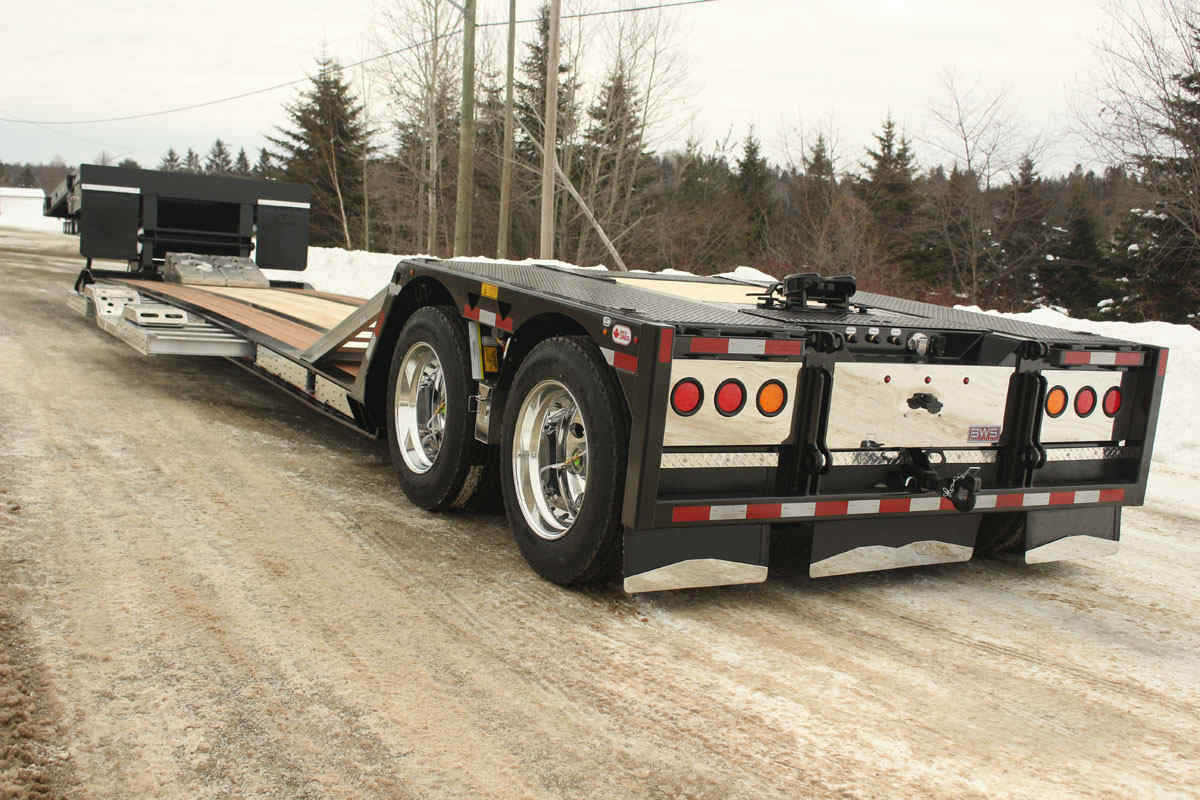

This flatbed trailer features a unique detaching assistance to the main deck. ADG models offer a practical combination of low operation cost and minimal environmental impact to give you a maximum return on investment.

Uniquely, the ULP model answers the call of the agriculture industry in allowing the lowest deck heights in the industry. The ADG ULP has a loaded deck height of just 12″ with optional wheel wells that will drop the load a further 4″ to accommodate the growing size of farm machinery.

Models / Specs / Options


  • Overall length of 48 feet
  • Overall width of 102 inches

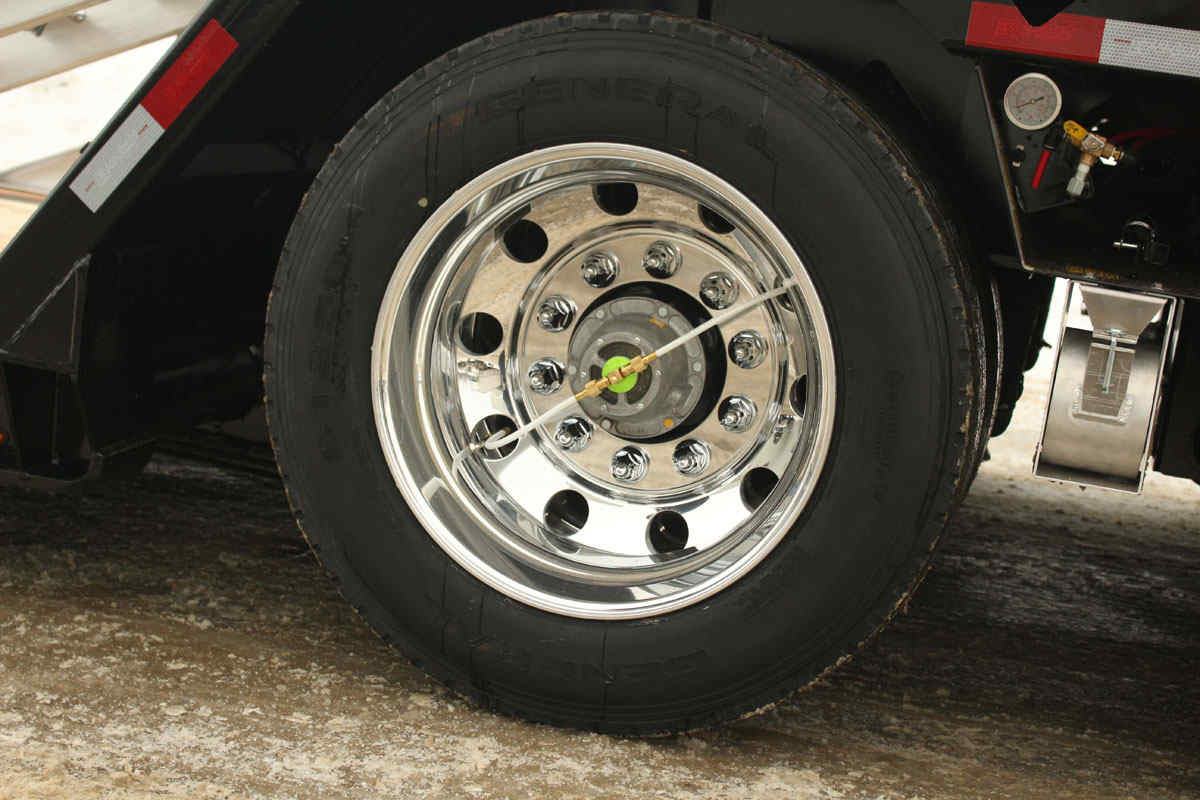

  • Two axles of 25,000 lb capacity, with large inner and outer oil bath bearings and a ¾ inch wall

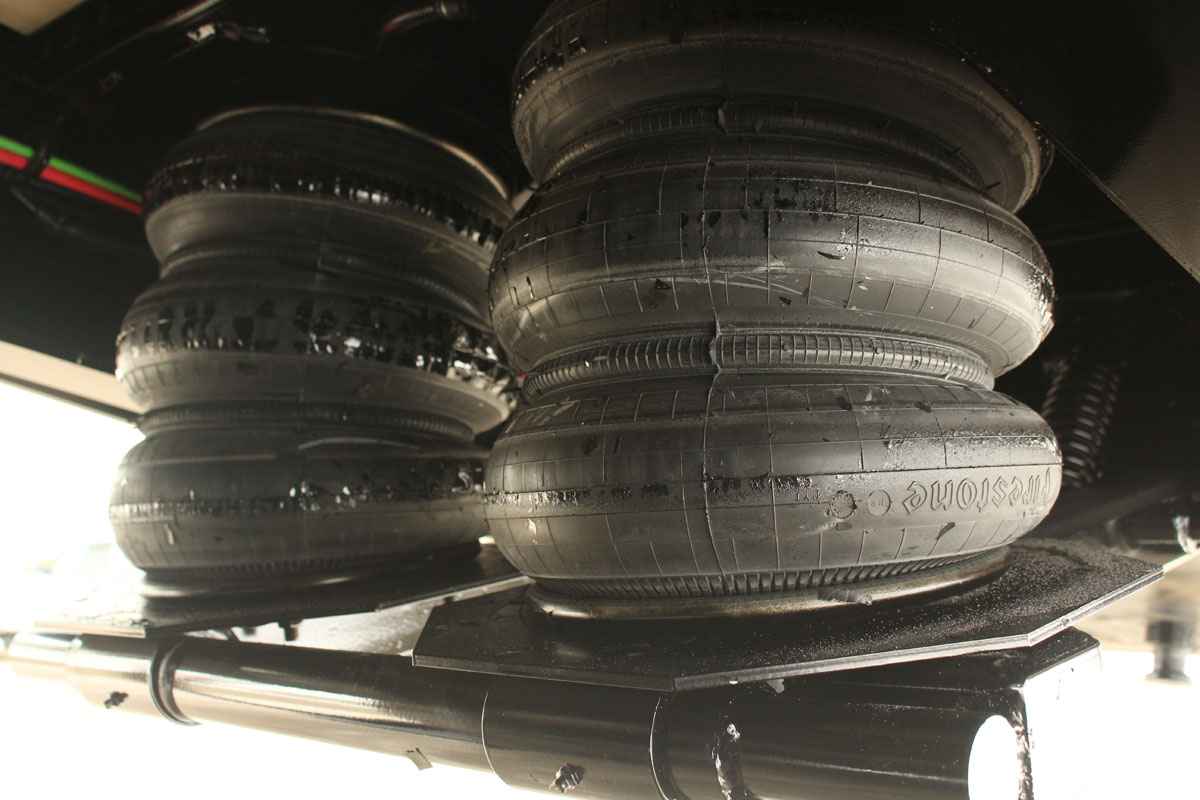

  • Ridewell RAR 240 suspension, 1 wishbone and 1 underslung, air ride 25,000 lbs with adjustable ride height - includes air gauge and dump valve
  • Floor of 1 ⅛ inch shiplapped apitong/keruing outside on main deck, and 1 ⅛ inch shiplapped softwood between beams
  • Preparation for finish by steel shot blast, commercial/industrial topcoat, and oven baked
  • Our standard colour is black

Photo Gallery
