Trailer Overview

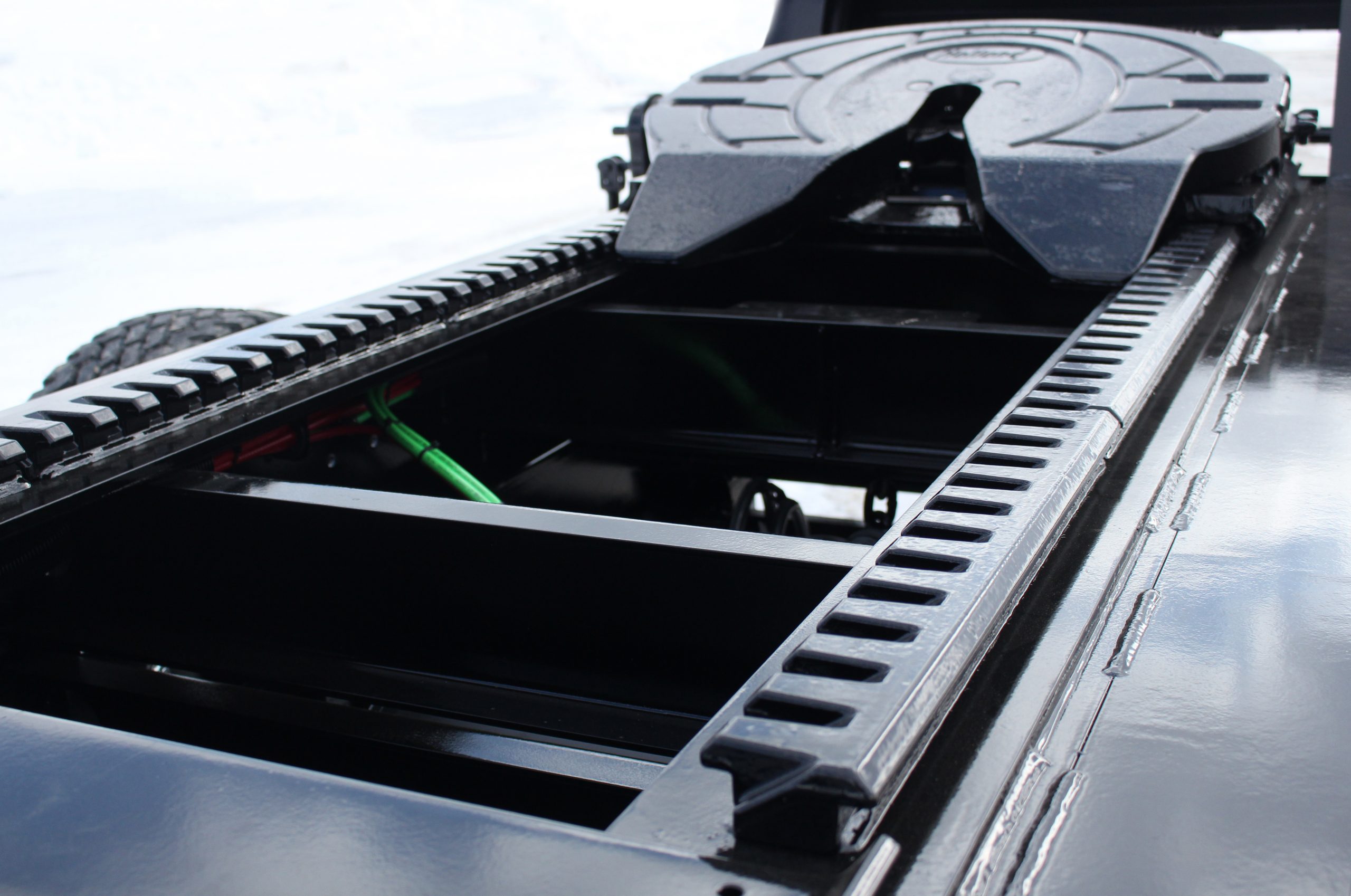

When utilizing a Jeep and adding additional axles, you can adjust your weight distribution on your load more easily and with a sliding fifth wheel, you can move your weights around in smaller increments to get your weight where you need it most. Our Hydraulic Jeeps have such features as a manual sliding fifth wheel, LED Lighting, H.D. axles and suspensions, and the 60 ton has an optional removable third axle.

Models / Specs / Options

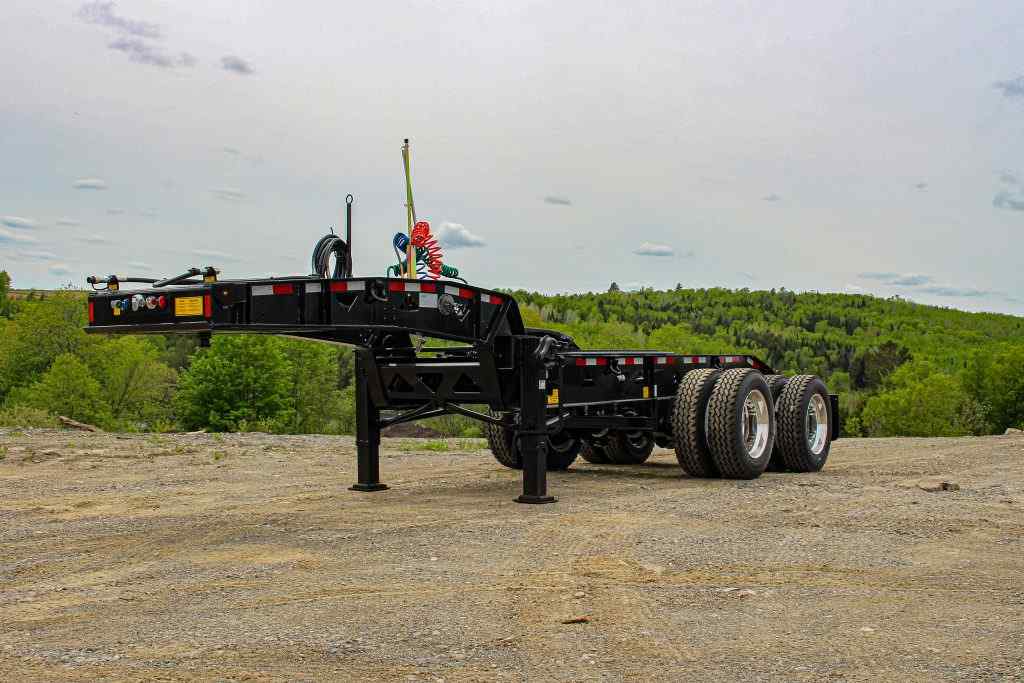

40JD2X HG

  • Overall length of 25 feet
  • Overall width of 102 inches
  • Main frame is fabricated top and bottom - flange ⅜ inch by 5 inch KSI
  • Two axles of 25,000 lb capacity with a 77.5 inch track and ¾ inch wall - suspension pin system included to carry axles when trailer is raised
  • Ridewell RAR 240 25,000 lb suspension - 9 inch ride height
  • Prepared for finish by steel shot blast, with a commercial/industrial top coat applied, and are oven baked
  • Our standard colour is black

60JD3X HG

  • Overall length of 26 feet, 6 inches
  • Overall width of 102 inches
  • Main frame is fabricated top and bottom - flange ⅜ inch by 5 inch KSI
  • Three axles of 25,000 lb capacity with a 77.5 inch track and ¾ inch wall - suspension pin system included to carry axles when trailer is raised
  • Ridewell RAR 240 25,000 lb suspension - 9 inch ride height
  • Prepared for finish by steel shot blast, with a commercial/industrial top coat applied, and are oven baked
  • Our standard colour is black

Photo Gallery

Get Started with BWS Trailers

Whether you’re a dealer or customer, we’re here to answer any questions and help you source your next trailer.
