Trailer Overview

A great option for work in the oilsands, our Scissornecks flatbed trailer are rugged and customizable for your convenience. All of our Scissorneck trailers are prepared for finish by steel shot blast, with a commercial/industrial top coat applied, and are oven baked. Our standard colour is black.

Models / Specs / Options

40SN3X

  • Overall length with beavertail down is 54 feet, 7 inches in the flat position and 53 feet in step position. With the beavertail up, the overall length is 53 feet in flat position and 51 feet, 5 inches in step position.
  • Overall width of 120 inches
  • Floor of bolted 3 inch west-coast fir, ½ inches above the flanges
  • Three axles of 25,000 lb capacity each with an 88 inch track and ¾ inch wall
  • Ridewell U/S 30,000 lb suspension, 9 inch ride with dump valve and air gauge

40SN3X SB

  • Overall length of 51 feet, 1 inch
  • Overall width of 120 inches
  • Floor of bolted 3 inch west-coast fir, ½ inches above the flanges
  • Three axles of 25,000 lb capacity each with an 88 inch track and ¾ inch wall
  • Ridewell U/S 30,000 lb suspension, 9 inch ride with dump valve and air gauge

60SN3X

  • Overall length of 54 feet, 7 inches with beavertail down in flat position and 53 feet in step position. With beavertail up, overall length of 53 feet in flat position and 51 feet, 5 inches in step position.
  • Overall width of 120 inches
  • Floor of bolted 3 inch west-coast fir, ½ inches above the flanges
  • Three axles of 30,000 lb capacity each with an 88 inch track and ¾ inch wall
  • 30,000 lb Holland Spride Ride suspension

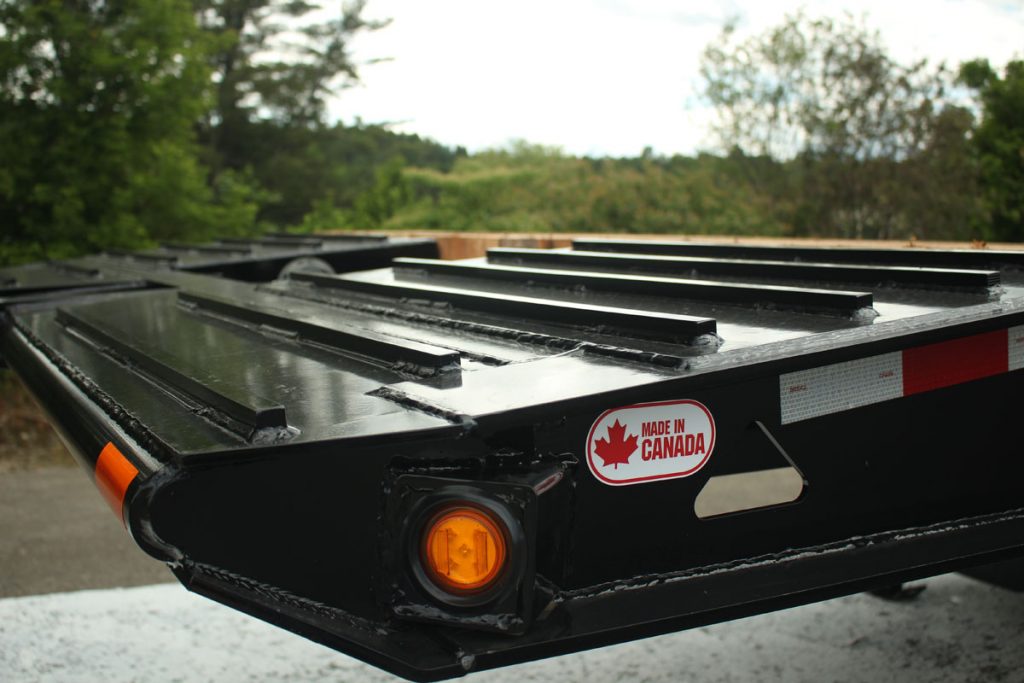

Photo Gallery
