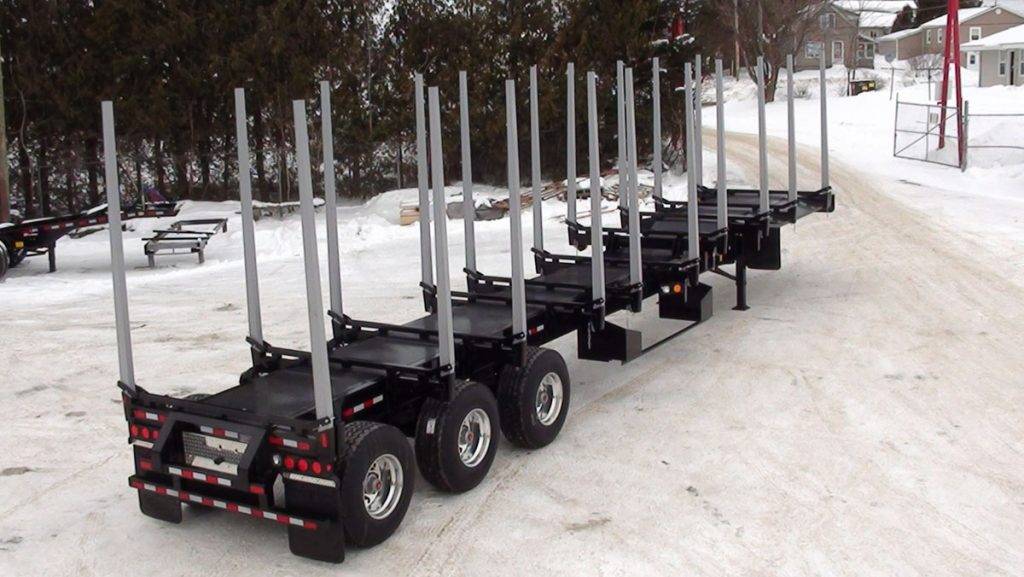

Trailer Overview

Our Maine logger features fabricated stakes, formed pockets (no weld, low stress) and floating cross members to allow for torsional twisting without cracking the main frame. Its LED lights, HD front & rear bunks and full length welded floor make this logger a great option for rugged environments.

Models / Specs / Options

42LD3X4T USAE

  • Overall length of 42 feet
  • Overall width of 102 inches
  • Floor of 10 ga. Deck plate between the main beams - welded full length
  • Three axles of 25,000 lb capacity each, with a 77.5 inch track and ¾ inch wall

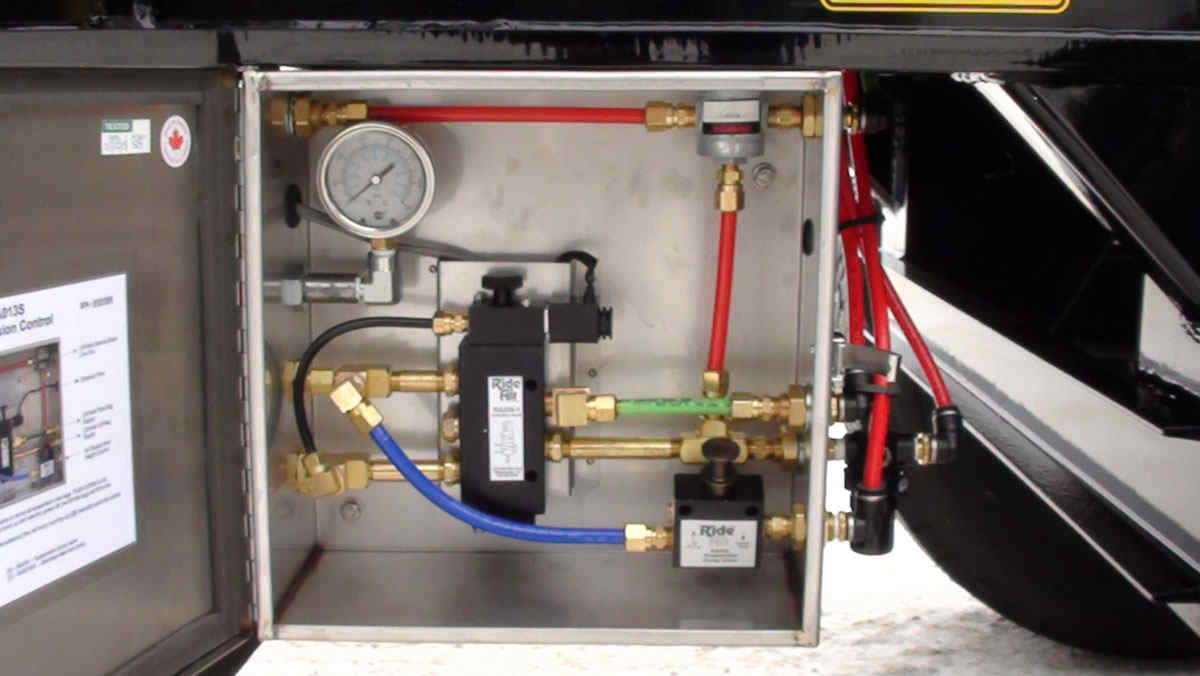

  • Ridewell Air Ride RAR240 O/S 30,000 lb suspension with 15 inch ride height, c/w check chains and full manual dump
  • Preparation for finish by steel shot blast, commercial/industrial topcoat, and oven baked
  • Standard colour is black with light grey stakes

46LD3X4T USAE

  • Overall length of 46 feet
  • Overall width of 102 inches
  • Floor of 10 ga. Deck plate between the main beams - welded full length
  • Three axles of 25,000 lb capacity each, with a 77.5 inch track
  • Ridewell Air Ride RAR240 O/S 30,000 lb suspension with 15 inch ride height, c/w check chains and full manual dump
  • Preparation for finish by steel shot blast, commercial/industrial topcoat, and oven baked
  • Standard colour is black with light grey stakes

48LD3X5T USAE

  • Overall length of 48 feet
  • Overall width of 102 inches
  • Floor of 10 ga. Deck plate between the main beams - welded full length
  • Three axles of 25,000 lb capacity each, with a 77.5 inch track
  • Ridewell Air Ride RAR240 O/S 30,000 lb suspension with 15 inch ride height, c/w check chains and full manual dump
  • Preparation for finish by steel shot blast, commercial/industrial topcoat, and oven baked
  • Standard colour is black with light grey stakes

46LF3X4T USAE

  • Overall length of 46 feet
  • Overall width of 102 inches
  • Floor of 10 ga. Deck plate over the fifth wheel, between the main beams and over the suspension area, welded full length
  • Three axles of 25,000 lb capacity each, with a 77.5 inch track
  • Ridewell Air Ride RAR240 O/S 30,000 lb suspension with 15 inch ride height, c/w check chains and full manual dump
  • Preparation for finish by steel shot blast, commercial/industrial topcoat, and oven baked
  • Standard colour is black with light grey stakes

48LF3X5T USAE

  • Overall length of 48 feet
  • Overall width of 102 inches
  • Floor of ⅛ inch deck plate between the main beams - welded full length
  • Three axles of 25,000 lb capacity each, with a 77.5 inch track
  • Ridewell Air Ride RAR240 O/S 30,000 lb suspension with 15 inch ride height, c/w check chains and full manual dump
  • Preparation for finish by steel shot blast, commercial/industrial topcoat, and oven baked
  • Standard colour is black with light grey stakes
